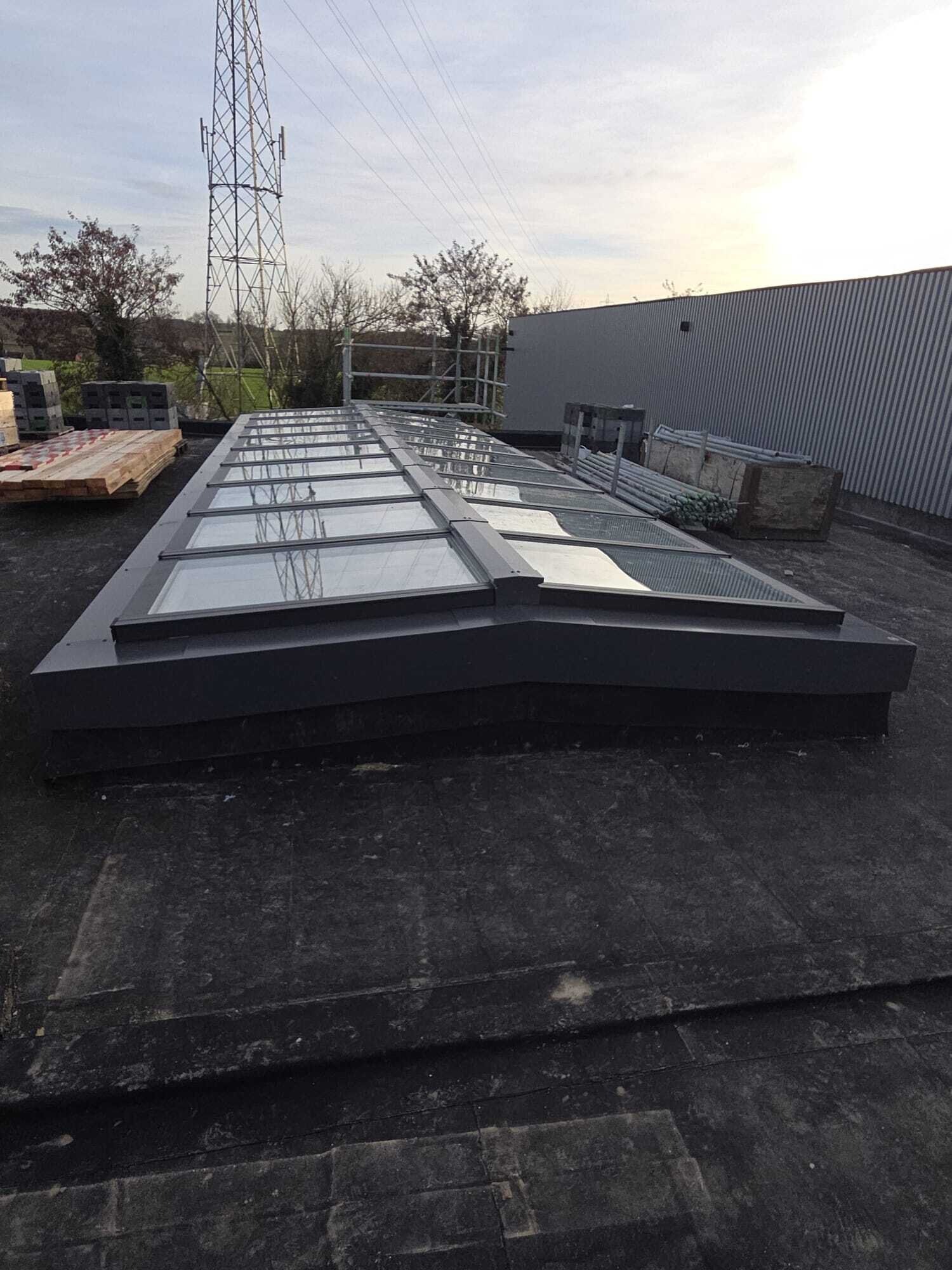

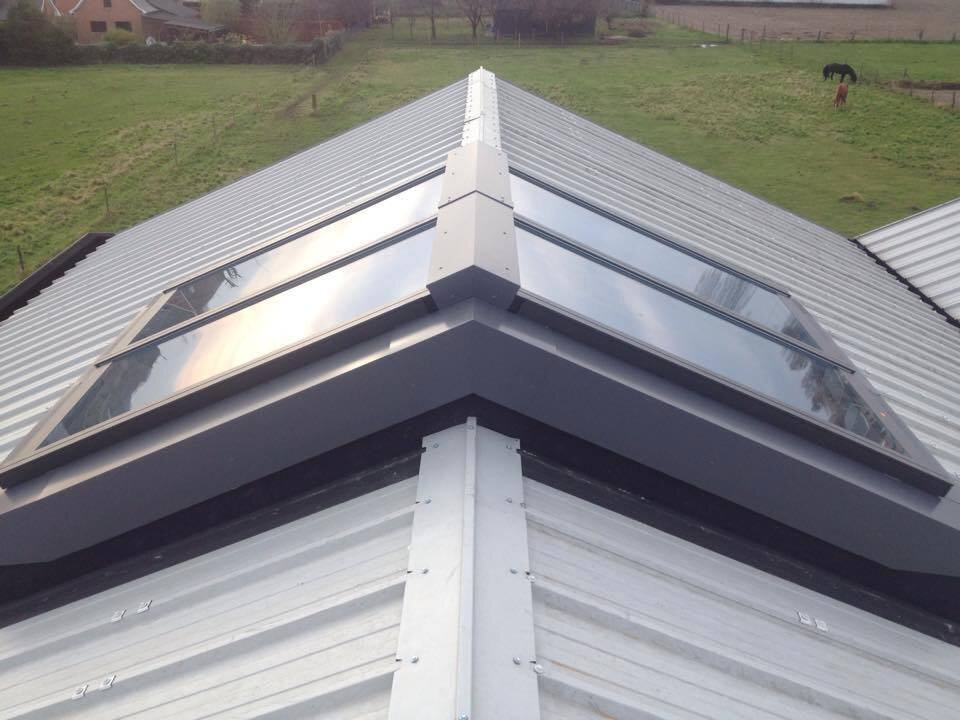

Ridgelight 25-40°

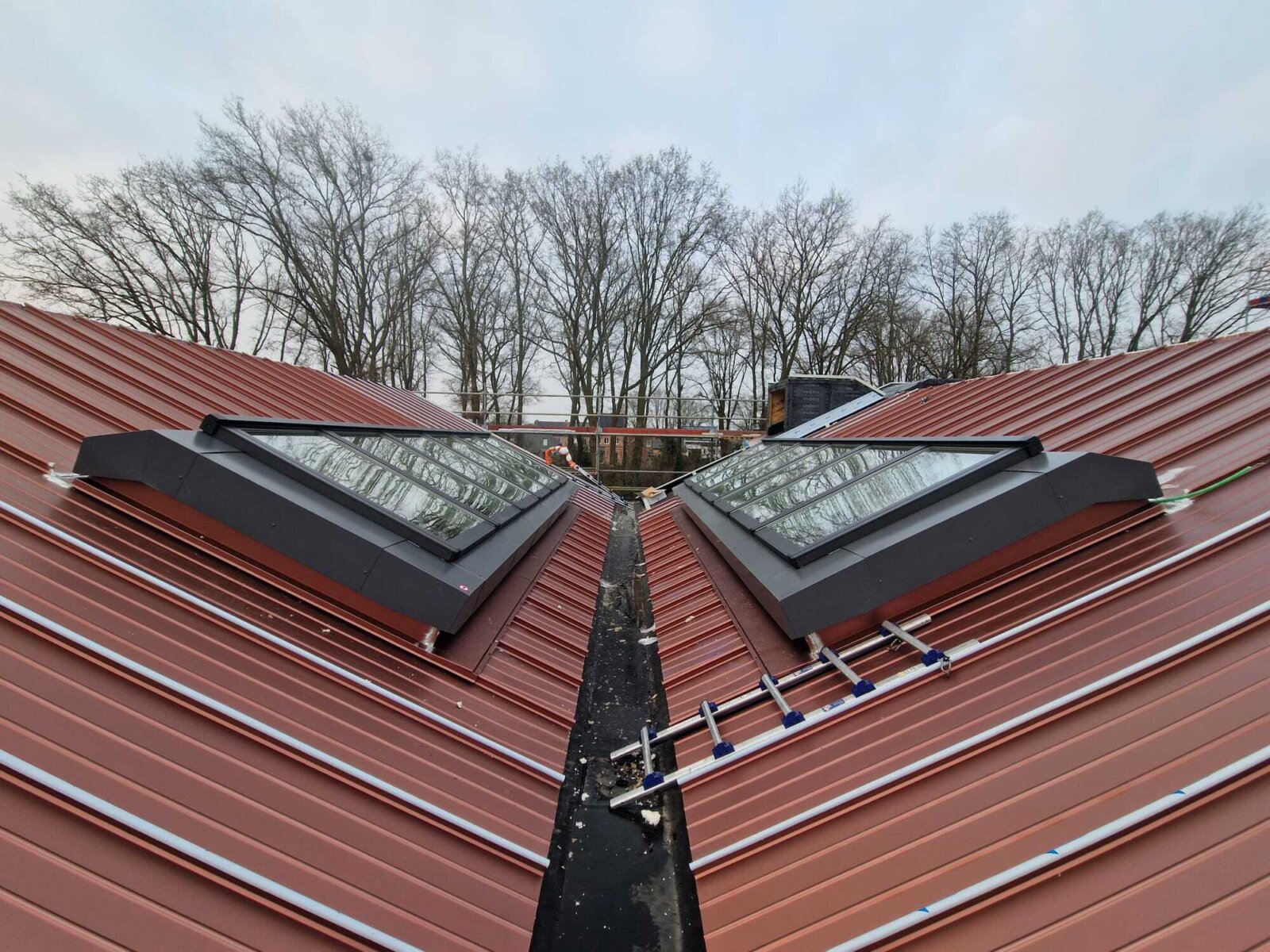

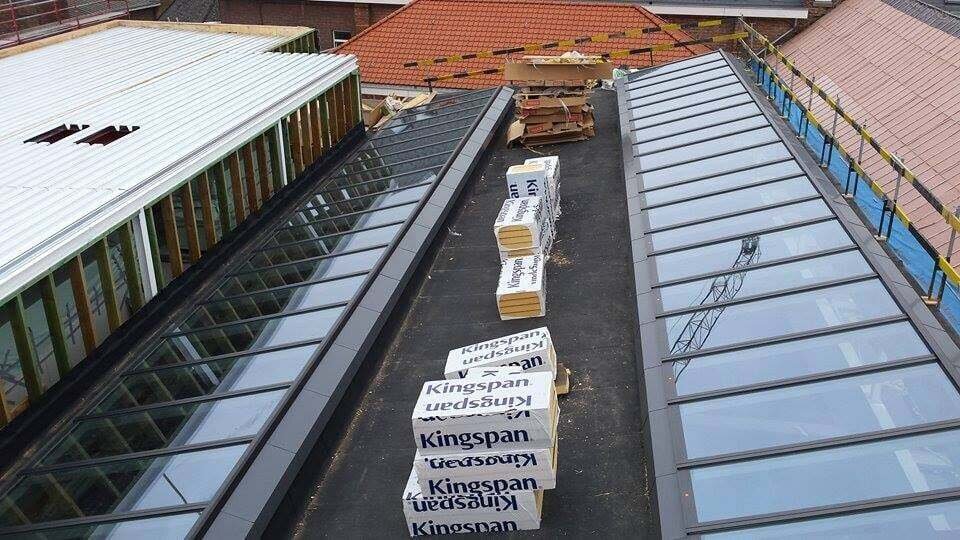

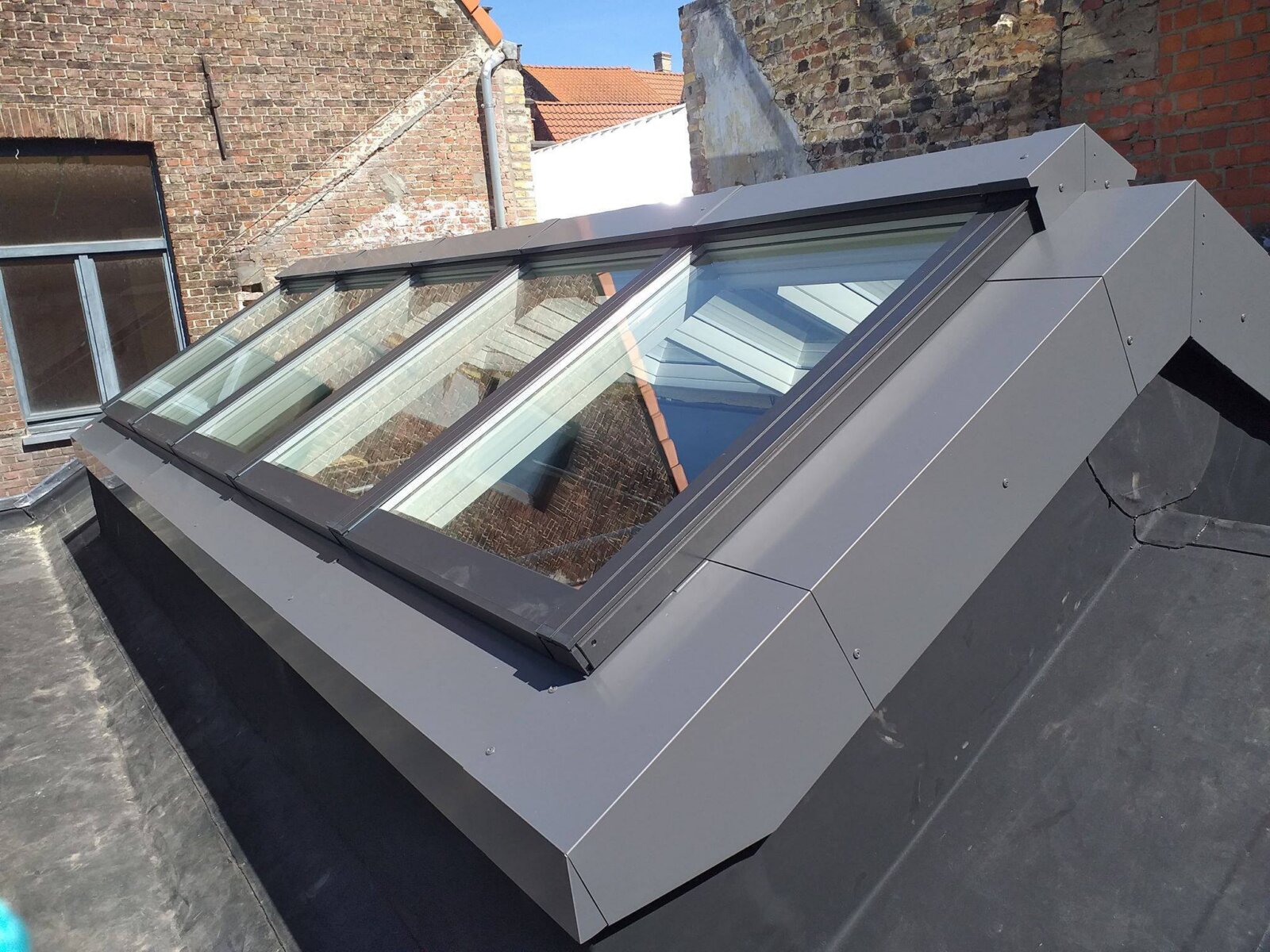

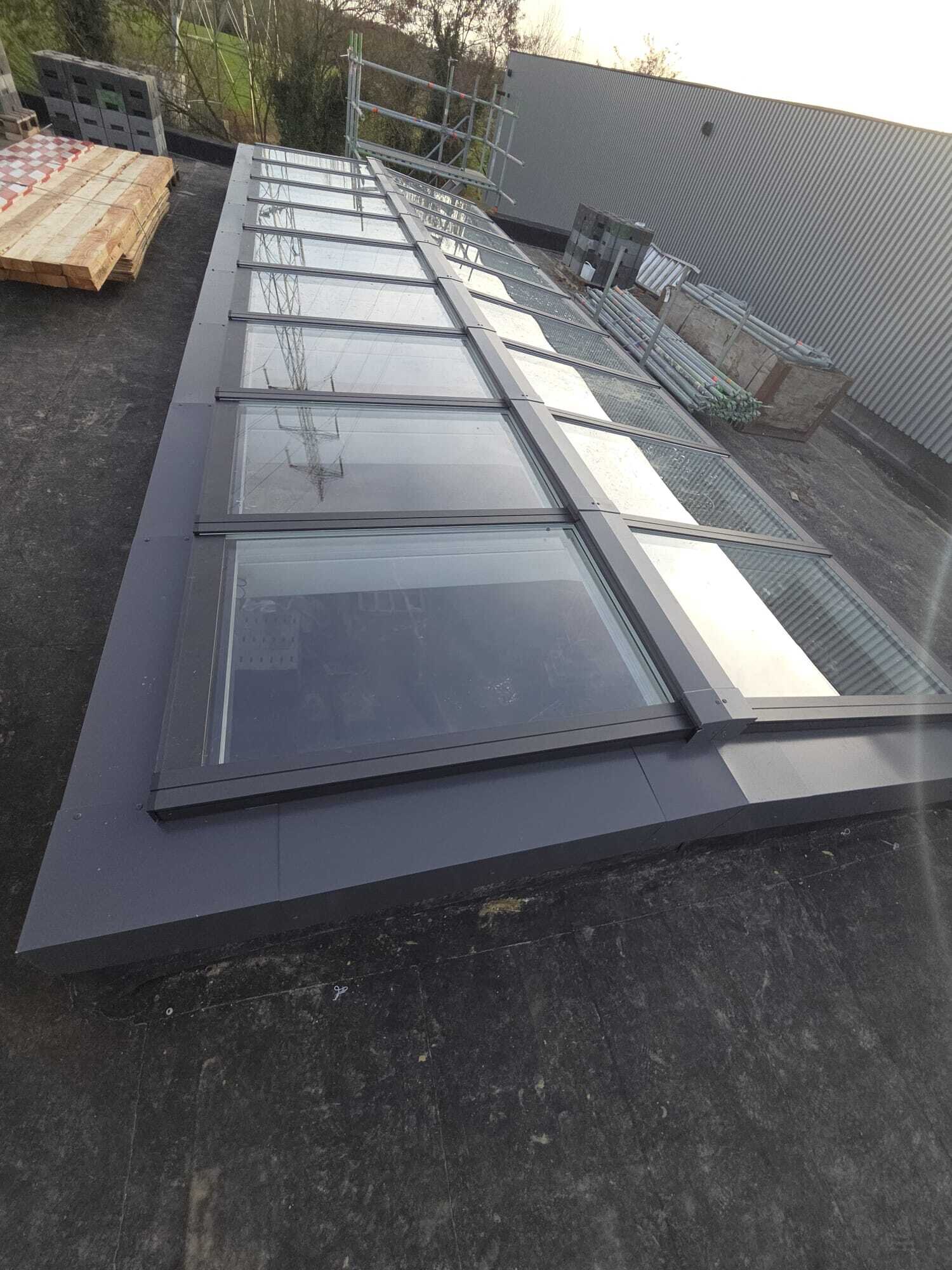

Ridgelight is a classic solution, consisting of two rows of skylights linked together at the ridge, creating a self-supporting structure. The flashing allows for installations with a pitch of 25 to 40°.
Due to horizontal forces, it is recommended to use a sub-construction of steel or concrete when mounting a Ridgelight. Ridgelights are mounted on a standard steel profile, 100 mm wide (not a VELUX component). The brackets are fixed with a clamping system holding the skylights in place. It is not recommended to fasten the mounting brackets of a Ridgelight directly onto a wooden batten with screws.
Technische fiches van de Velux modulaire lichtstraten
Download eenvoudig de uitgebreide technische fiches van de Velux modulaire lichtstraten en krijg een helder zicht op de specificaties en prestaties van jouw gewenste oplossing.
